| Light Source: | LED |
Item Type: | Tube Lights |
LED Light Source: | Samsung Smd 5630 |
| Warranty(Years): | 5 |
Input Voltage(V): | AC 220-240 |
Lamp Power(W): | 30 |
| Lamp Luminous Flux(lm): | 4200 |
Lamp Luminous Efficiency(lm/w): | 160 |
CRI (Ra>): | 83 |
| Color Temperature(CCT): | 2700-6500K |
Working Temperature(℃): | -30 - 45 |
Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | PC |
IP Rating: | IP44 |
Certification: | CE, EMC, FCC, LVD, PSE, RoHS, UL, VDE |
| Place of Origin: | China (Mainland) |
Brand Name: | ARK |
Model Number: | T8 |
| Material: | all pc (aluminum inside) |
Cover: | Milky/clear |
light source: | Samsung Smd 5630 |
| Packaging Details: | 1pc in a 25pcs/carton with foam,4 carton in one big carton. |
Product Description

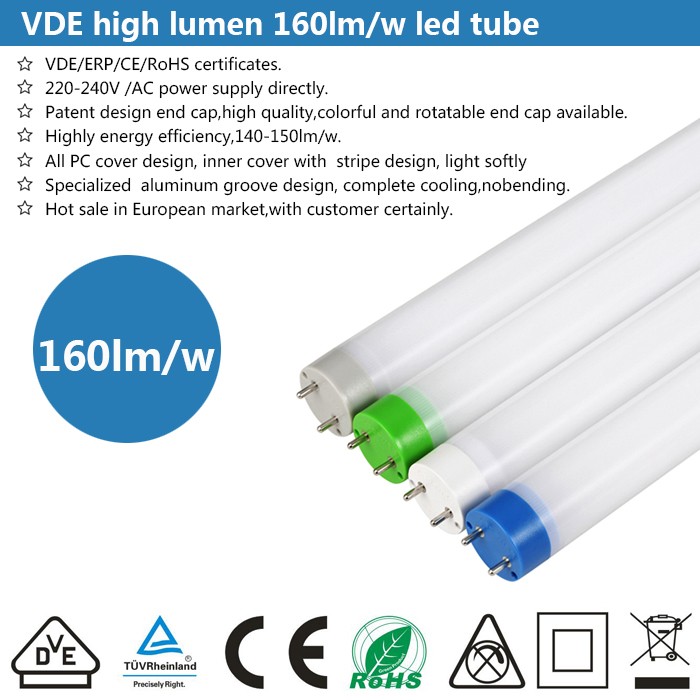

Description of VDE ALL PC T8 led tube 160lm/w led tube light

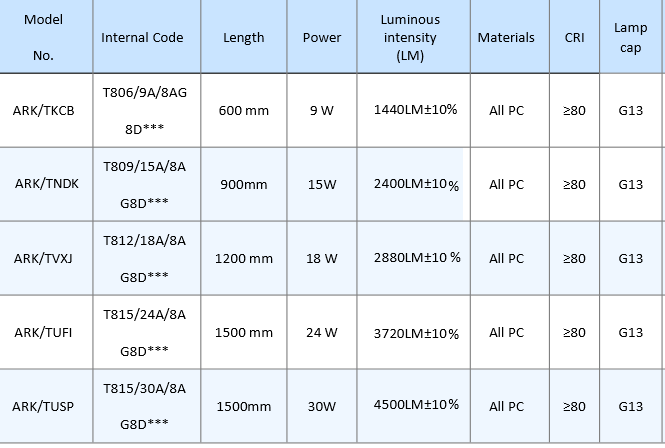

parameter of VDE ALL PC T8 led tube 160lm/w
Tech Data |
|
|
Model |
ARK/TUSP |
|
LED Type |
Epistar smd2835 LEDs |
|
LED Power |
9W/13w/15W/18W/22w/24W/30W |
|
LED Color |
3000K/3500K/4000K/4500K/5000K/5500K/6000K |
|
Input Voltage |
AC220-240V |
|
Frequency Range |
50Hz – 60Hz |
|
Power Factor |
>95% |
|
Power Efficiency |
>90% |
|
Luminous Efficiency |
160LM/W |
|
Dimension |
L1560mm x D25mm |
|
Color Temperature |
WW |
2700-3500K |
PW |
4000-5500K |
|
CW |
6000-7000K |
|
CRI |
WW |
Ra>80 |
PW / CW |
Ra>83 |
|
Lumens Output |
WW |
160lm/w |
PW |
160lm/w |
|
CW |
160lm/w |
|
Beam Angle |
>180° |
|
PC Housing |
Frosted/Clear |
|
Working Temperature |
-20°C ~ +40°C |
|
Storage Temperature |
-25°C ~ +65°C(25°Cbest) |
|
Life span |
35000~50000hrs |
|
Certification |
CE, RoHS,TUV,VDE |
|
Net Weight |
0.65Kg |
|
package |
156*21*21cm (25pcs/box) 14.0kgs
|
|

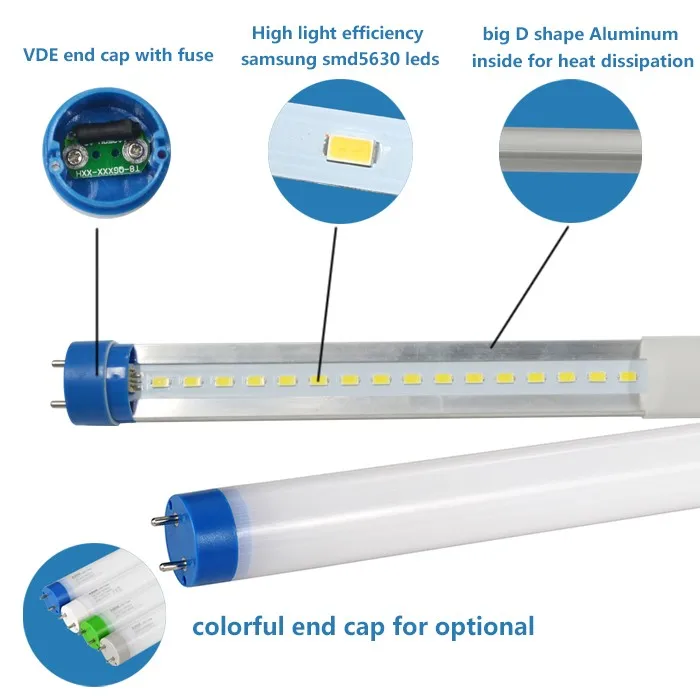

Detailed drawing of VDE ALL PC T8 led tube 160lm/w
Advantages of VDE ALL PC T8 led tube 160lm/w
1,can work well with single tube with Magnetic ballast.
2,AC Power 220-240 V directly.
3,Specialized PC cover design for optimal light distribution and smooth visual effect.
4,Highly energy efficiency, meet the requirement of ERP and DLC.
5,Colorful end cap for optional.
6,High-tech optical design.
7,VDE certification.
Application of VDE ALL PC T8 led tube 160lm/w
1.School/universities/hospital
2.Conference/meeting room, show room
3.Commercial complex
4.Factories/offices
5.Supermarkets
6.Residential/institution buildings
Installation of VDE ALL PC T8 led tube 160lm/w
a,work with magnetic ballast
b,If ballast broken, can rewiring AC96-265V connect directly
a.Connect with Magnetic ballast:
1,Turn off the power
2,Remove the fluorescent tube
3,Install ARK led tube in one end
4,Turn on the light
a.Connect with magnetic ballast:
1,Turn off the power
2,Install ARK led tube
3,Turn on the power
b.AC220-240V Connect Directly:
1,Turn off the power
2,Take out the ballast and starter,rewiring
3,AC 96-265V connect directly
4,Turn on the light.
Certification of VDE ALL PC T8 led tube 160lm/w
VDE Certification,VDE No.40042984
More info about VDE,you please search at http://www.VDE.com ,type The VDE No.40042984 to find more!
Packaging & Shipping
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange
to deliver the items.
Our Services
1. Provide solutions and high quality products with reasonable price
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
4. Protection of your sale area, ideas of design and all your private information
5. Warranty: 5 years
Company Information
ARK Intelligent technology co.,ltd established in 2007, focus on developing,manufacturing and marking high quality LED lighting products. With excellent R&D team and over three years’ experience in the filed of LED source----high power LEDs,we have the leading technology on achieving highest luminous efficiency LED lighting products.Main product is LED tube which is VDE, TUV, ERP,CE,ROHS,UL,cUL,DLC, lighting facts, FCC, PSE approve for different market.Under the current sales circumstance, ARK lighting is exploiting the new path which is featured as advanced technology and outstanding R&D team, stable function and excellent product. What is more,ARK is always reducing cost through technological innovation,increasing cost performance
and providing sincere service to customers.
certification:
we got VDE, TUV, ERP, CE,ROHS,UL,cUL,DLC, lighting facts, FCC, PSE approve for different market.
FAQ
Is the led tube heat disspation good?
Yes,it is very good
1,we use the high quality Samsung SMD5630 leds,good quality and high power efficiency,
that the heat are reduce more!
2,The PCB bored,we use the aluminum meterial ,it easy for heat disspation!
3,Inside with a D shape Aluminun for heat disspation.
Why chose us?
1,we are the factory with more than 8 years experience for led tube.
2,we get CE ROHS TUV VDE certificate for our led tube to support the business in Europe market.
How many years warranty do you have for LED tubes ?In case something
goes wrong and we need to use warranty, what is procedure for getting new lamps?
1,we offer 5 years warranty.
2,We have our warranty letter, in warranty period, in case of any our product is found to be defective
in materials or workmanship,we will send replacement or rearing the defect and return back to you!
More documents(IES file, integrating sphere test report,UL DLC cert) or samples
required,please contact me!
